Display System
- Display System3LCD system
Display Device
- Size of Effective Display Area0.64” (16.3 mm) x 3 BrightEra LCD Panel, Aspect ratio: 16:10
- Number of Pixels6,912,000 (1920 x 1200 x 3) pixels
Projection Lens
- FocusManual
- ZoomManual (Approx. x 1.6)
- Lens shiftManual, Vertical –35% to +55%, Horizontal: +/–15%
- Throw Ratio1.23: 1 to 1.97: 1
Light Source
Screen Size
- Screen Size1.02 m to 7.62 m (40 in to 300 in) (measured diagonally)
Light Output*1
- Mode: Standard5,300 lm*2 / 5,800 lm (Center)*3
- Mode: Middle4,000 lm
- Mode: Low-
Color Light Output*1
- Mode: Standard5,300lm
- Mode: Middle4,000 lm
- Mode: Low-
Contrast Ratio (full white / full black)*1
- Contrast Ratio (full white / full black)*1∞:1
Displayable Scanning Frequency
- Horizontal15 kHz to 92 kHz
- Vertical24 Hz to 92 Hz
Keystone Correction (Max.)
- Keystone Correction (Max.)Horizontal: +/-30 degrees
Vertical: +/-30 degrees
Accepted Signal Resolution
- Computer Signal InputMaximum signal resolution: 1920 x 1200*4
- Video Signal InputNTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/60p, 1080/50p, 3840/60p, 3840/30p, 3840/25p, 3840/24p, 4096/60p, 4096/30p, 4096/25p, 4096/24p

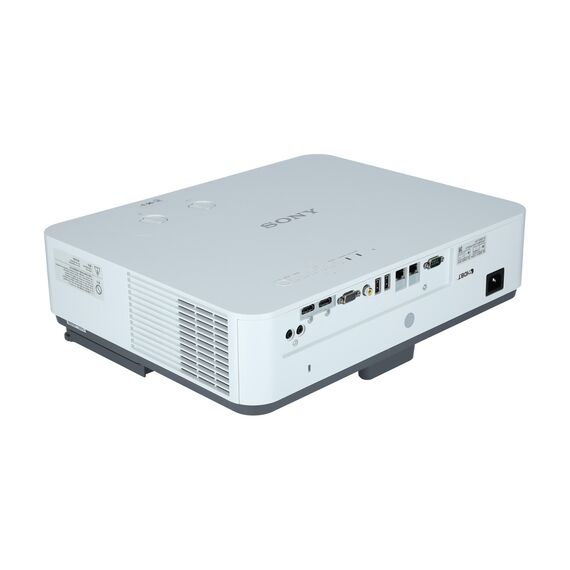

INPUT / OUTPUT
- INPUT ARGB / Y PB PR input connector: Mini D-sub 15 pin (female)
Audio input connector: Stereo mini jack
- INPUT BHDMI input connector: HDMI 19-pin, Digital RGB/Y PB PR, HDCP support
Audio input connector: HDMI audio support
- INPUT CHDMI input connector: HDMI 19-pin, Digital RGB/Y PB PR, HDCP support
Audio input connector: HDMI audio support
- INPUT DHDBaseT interface connector: RJ45, 4 play (Video, Audio, LAN, Control)
- VIDEO INVideo input connector: Phono jack (Composite)
- OUTPUTAudio Output connector Stereo mini jack
Audio input connector: Shared with INPUT A
- REMOTED-sub 9-pin (male) / RS232C
- LANRJ45, 10BASE-T / 100BASE-TX
- USBTYPE-A x 1 (for F/W update), TYPEA for Power supply
Speaker
OSD Languages
- OSD Languages27-language (English, French, German, Italian, Spanish, Portuguese, Japanese, Chinese, Korean, Russian, Dutch, Norwegian, Swedish, Thai, Arabic ,Turkish, Polish, Vietnamese, Farsi, Finnish, Indonesian, Hungarian, Greek, Czech, Slovak, Romanian)
Acoustic noise (Mode: Standard / Middle) *1
- Acoustic noise (Mode: Standard / Middle) *135 dB / 32 dB
Operating Temperature / Operating Humidity
- Operating Temperature / Operating Humidity0°C to 40°C (32°F to 104°F) / 20% to 80% (no condensation)
Storage Temperature / Storage Humidity
- Storage Temperature / Storage Humidity-10°C to +60°C (14°F to +140°F) / 20% to 80% (no condensation)
Power Requirements
- Power RequirementsAC 100 V to 240 V, 4.7 A to 2.0 A, 50 Hz/60 Hz
Power Consumption
- AC 100 V to 120 V463 W
- AC 220 V to 240 V434 W
Power Consumption (Standby Mode)
- AC 100 V to 120 V0.5 W (when “Standby mode” is set to “Low”)
- AC 220 V to 240 V0.5 W (when “Standby mode” is set to “Low”)
Power Consumption (Networked Standby Mode)
- AC 100 V to 120 V1 W (LAN), 21 W (ALL Terminals and Networks Connected / exclude USB Device and speaker off, when “Standby Mode” is set to “Standard”)
- AC 220 V to 240 V1 W (LAN), 21 W (ALL Terminals and Networks Connected / exclude USB Device and speaker off, when “Standby Mode” is set to “Standard”)
Standby Mode / Networked Standby Mode Activated
- Standby Mode / Networked Standby Mode ActivatedApprox. 2 Minutes
Dimensions (W x H x D) (without dust filter, protrusions)
- Dimensions (W x H x D) (without dust filter, protrusions)Approx. 422 x 100 x 333 mm (16 5/8 x 3 15/16 x 13 1/8 inches)
Dimensions (W x H x D)
- Dimensions (W x H x D)Approx. 422 x 129 x 338 mm (16 5/8 x 5 3/32 x 13 5/16 inches)
Mass
- MassApprox. 6.8 kg (15 lb)
Supplied Accessories
- Supplied AccessoriesRM-PJ8 Remote Commander
